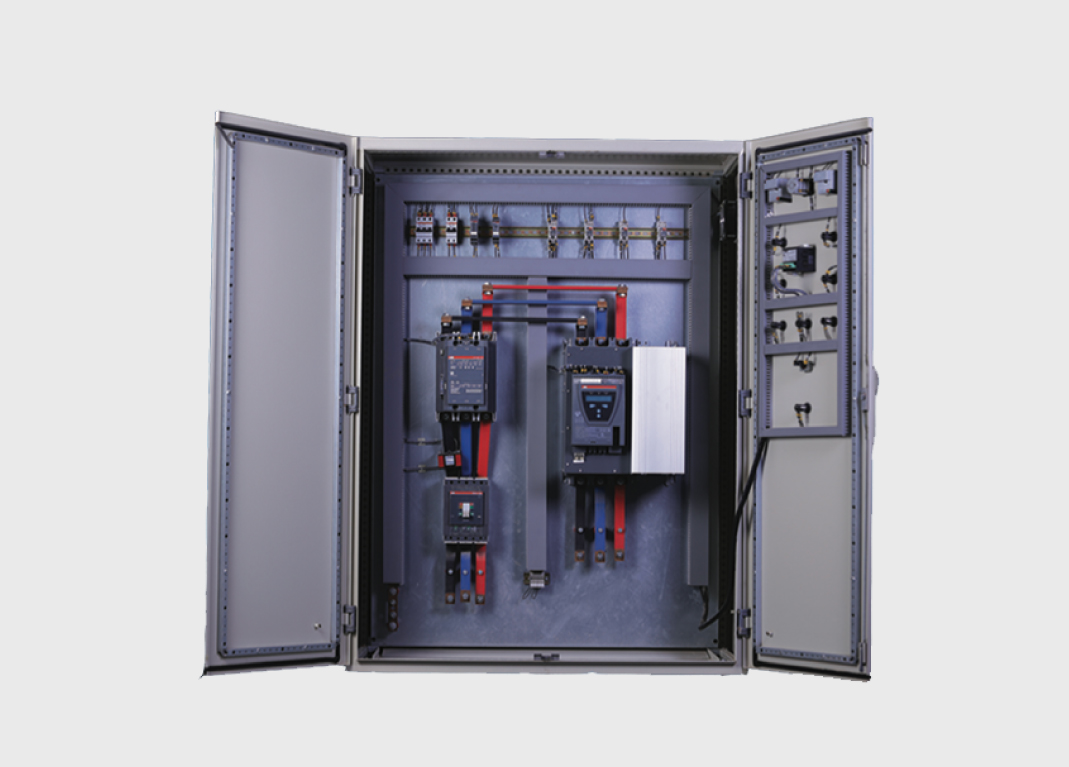

Electrical Control Panels

We have a dedicated Division to design and manufacture all Types of electric control panels suitable for all applications such as (DOL – STAR/ DELTA – SOFT STARTER – ATS, VFD-‒‒‒‒‒‒‒‒‒etc) VFD———-etc) with high quality components and covering a range of horsepower.

Features & Properties

Equivalent to type H07RN-F cables.
Meets the requirement of canaled hd 22.1.s2, din • vde 0282 part 810, iec 245, cei 20-19 & bs 6007, bs 6899.
Designed for heavy-duty use.
Cut, tear & abrasion resistant.
Exceptional long-term performance.
Excellent resistance to oils, acids, chemicals, ozone & solvents.
Excellent impact resistance.
Excellent weather resistance.
Performs & looks like vulcanized rubber.
Excellent electrical properties.
Temperature range -40° to +90°.

Application

For continuous use in deep wells to supply power to submersible pumps down to depths of 500 meters.

Construction:

Conductor: Finely stranded bare copper flexible conductor.
Insulation: Oil & water-resistant thermoplastic rubber (TPR).
Sheath: Black/Blue heavy-duty thermoplastic rubber.
Core colors:
- 3-core: RED, Yellow, Blue or Black, Light Blue, Brown.
- 4-core: RED, Yellow, Blue, Green, or Black, Light Blue, Brown, Yellow with Green Line, or Green with Yellow Line.

Double sheathed 3 & 4 core cables are better suited for heavy-duty applications like sewage, slurry, and dewatering pumps. These conditions require the sheathing to withstand abrasion, prevent water ingress along the cable interstices, and resist acidic fluids and chemicals.

Features & Properties

Quality backed by 40 years of experience in the cable industry.
Excellent resistance to moisture, abrasion, grease, and oil.
Long flex life.
Excellent mechanical and electrical properties.
Generally conforming to: Cenelec HD21, IEC 60227, BS 6500, DIN VDE 0281, IS 694.
Approved by GWSSB, GWRDC, TWAD, PHED, PSTC, ONGC, railways, mines, etc.
Tested by SUGGEST, EIL, RITES, NPC.
Temperature range -15° to +70°.
